Measured from your plan

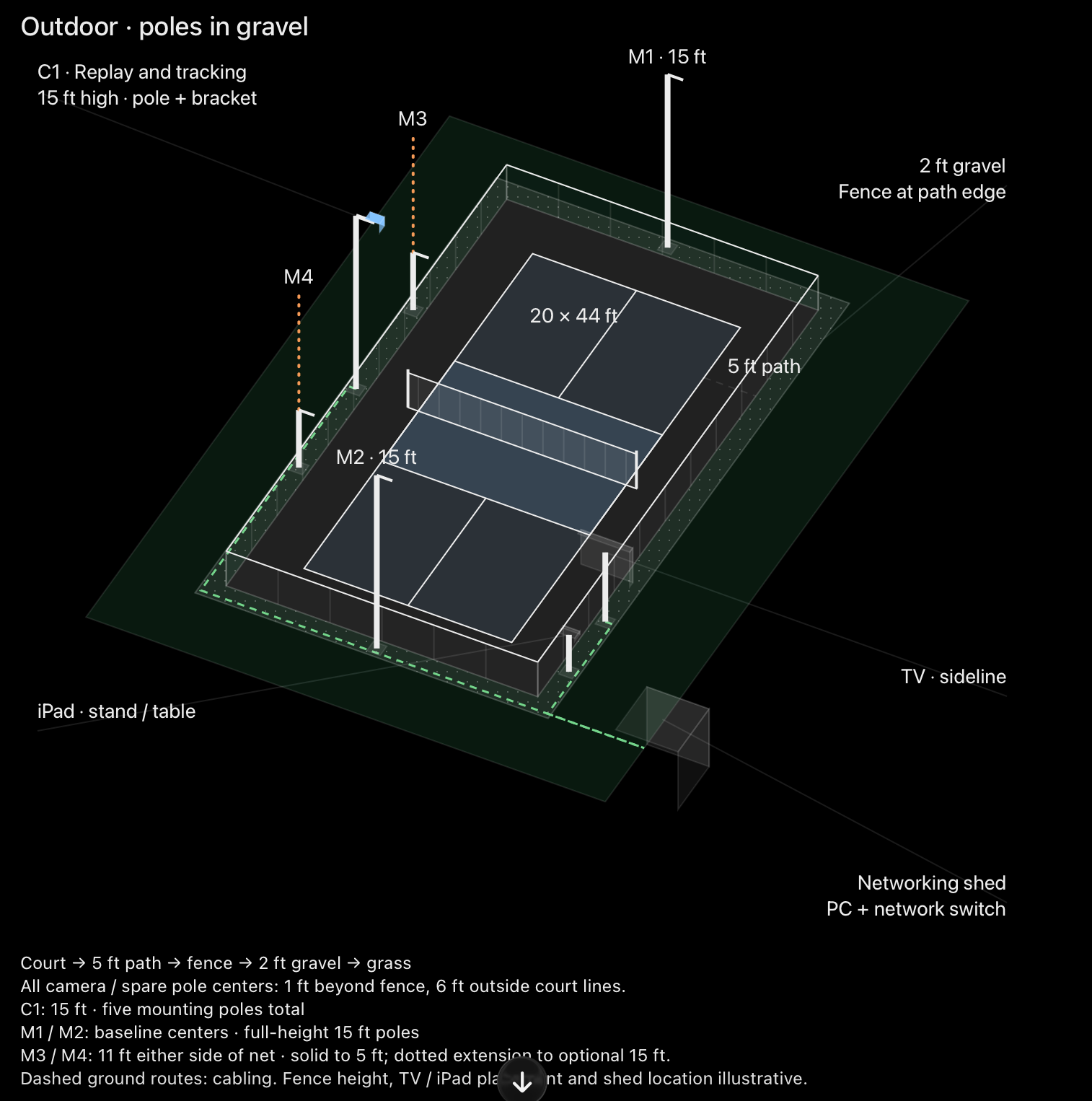

Court: 20 × 44 ft. Path: 5 ft on every side. Gravel: 2 ft beyond the fence. The three upright poles sit 1 ft beyond the fence, 6 ft outside the court lines.
C1, M1 and M2 are 15 ft high. M1/M2 sit at baseline centers. M3 and M4 are cameras on a 5 ft horizontal crossbar attached to C1, each 2.5 ft from the mast. The bar runs parallel to the left fence at a 4.85 ft elevation, just above its top; the former standalone M3/M4 poles are removed.
Illustrative details
The fence is modeled at 4 ft. The TV is aligned with C1 just inside the left fence, facing the court, with the landscape iPad mounted directly below on the same upright. The network cabinet sits in the grass behind C1 and is approximately 2 × 2 ft and 3 ft tall, about the size of a mini fridge. Cable routes fan out from the cabinet along the left gravel to M1/M2, up C1 and along the crossbar to M3/M4, and across the fence to the displays. Equipment dimensions, exact positions and cable routes are illustrative. Court markings follow USA Pickleball: 20 × 44 ft measured to the outside edges, 7 ft kitchens including their boundary lines, 2 in line width, and centerlines confined to the service courts. The net is 34 in at center and 36 in at the sidelines, with 22 ft clear between posts. Official court specifications. The model has three upright poles and three installed cameras: C1, M3 and M4. M1/M2 remain empty baseline mounts.
The C1 view is a perspective from the pole, not a calibrated camera coverage or lens simulation.
Touch controls
One finger rotates. Pinch with two fingers to zoom; move two fingers together to pan. Tap a marker to inspect it. Use 3D view to return from any preset.
